    Fitting a larger display is quite manageable when the dashboard comes apart in the right order. These 17 photographs show where each panel, plug and cable belongs.

    BMW 5 Series F10/F11Model years: 2010-2017Updated:
    View the F10/F11 screen Open the BMW wiring manual

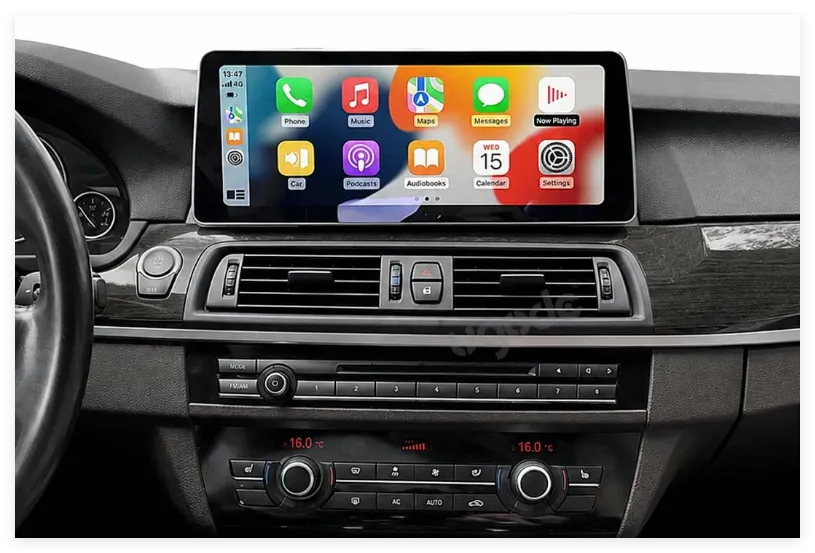

    BMW 5 Series F10 F11 Android screen installed with Apple CarPlay on the factory dashboard

    This walkthrough is for the BMW 5 Series F10 saloon and F11 Touring with a compatible CIC or NBT system. The trim and wiring are very similar on left- and right-hand-drive cars, but always compare the original iDrive menu and LVDS plug before ordering.

    Before touching the wiringRemove the key, switch off the ignition and disconnect the vehicle power supply. Cover unused plugs and exposed conductors with insulating tape. A plastic trim tool is much kinder to the dashboard than a metal screwdriver.

    What you will need

    • Plastic trim-removal tools
    • Phillips and Torx screwdrivers
    • Insulating or cloth harness tape
    • Soft cloth for the dashboard trim
    • Cable ties
    • A tray for the removed screws
    Do not overlook the fibre-optic cableIf the factory Quadlock plug contains a small fibre-optic insert, it must move to the matching position in the Android harness. Missing this detail is a common reason for no sound or no signal after installation.

    BMW F10/F11 installation steps

    Keep the screws from each panel together, and leave final reassembly until the screen, original iDrive display and sound have all been tested.

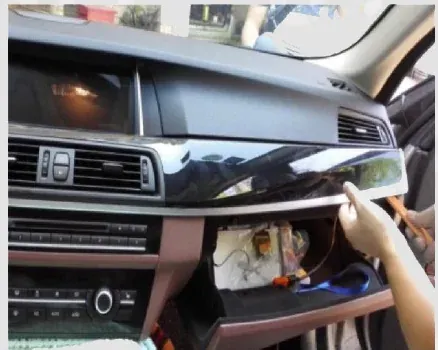

    1. BMW F10 centre air-vent panel being released with a plastic trim tool

      Lift the centre vent panel

      Start along the lower edge and work across the trim a little at a time. Once the clips release, support the panel rather than letting it hang from its wiring.

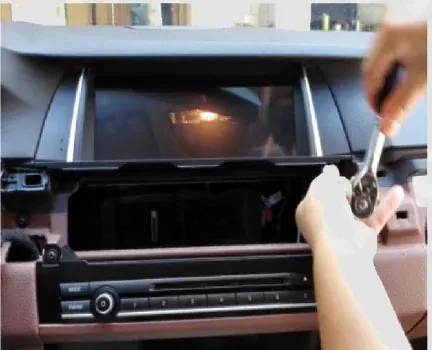

    2. Removing the factory display and CD head-unit screws from a BMW F10 dashboard

      Remove the display and head-unit screws

      Undo the screws holding the factory display and CD head unit. Put them somewhere safe; several are small and easy to lose.

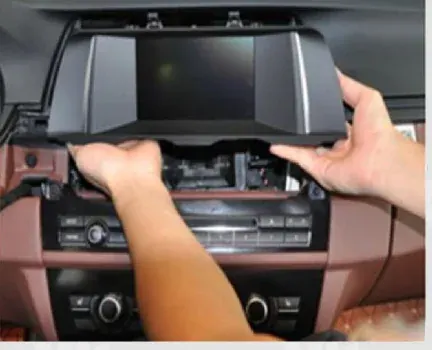

    3. Original BMW F10 iDrive display being lifted out of the dashboard

      Take out the original display

      Bring the screen forward with both hands. There is not much spare cable behind it, so avoid pulling sharply.

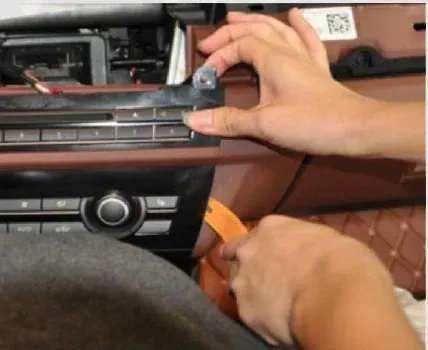

    4. Plastic trim tool releasing the BMW F10 CD and climate-control panel

      Release the control panel

      Slip a plastic tool under the CD and climate-control panel, then ease the clips free from one side to the other.

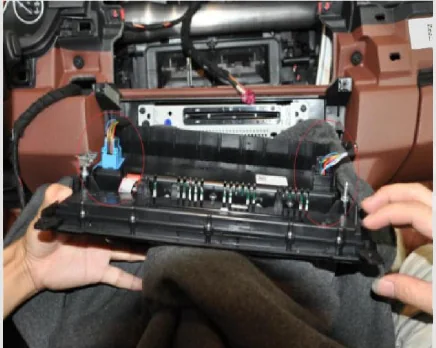

    5. BMW F10 CD and climate-control panel pulled forward before unplugging

      Unplug the control panel

      Hold the panel while disconnecting its factory plug, then set it on a soft cloth where it cannot be scratched.

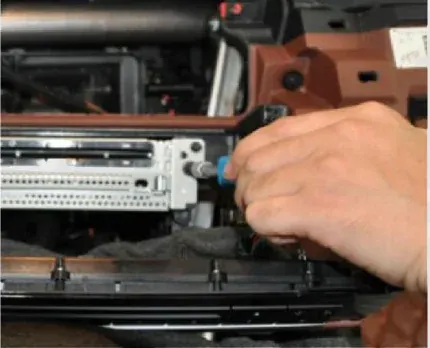

    6. Side retaining screw being removed from the BMW F10 CD head unit

      Slide the CD head unit forward

      Remove the two screws beside the head unit and pull the unit forward just far enough to reach the rear connector.

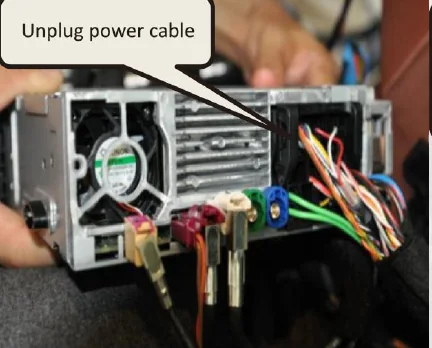

    7. Factory Quadlock power connector on the rear of a BMW F10 CD head unit

      Disconnect the main power plug

      Release the Quadlock locking lever and draw the connector straight out of the factory head unit.

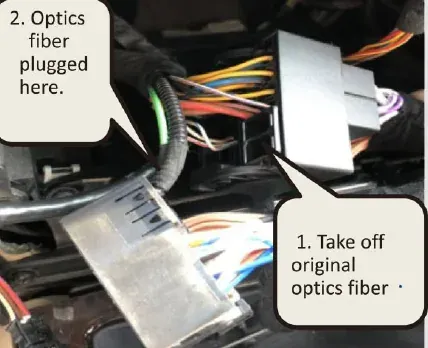

    8. BMW fibre-optic insert being moved into the Android screen harness plug

      Move the fibre-optic insert

      If your plug contains the green fibre-optic cable, unclip its small insert and fit it into the same pin position in the Android harness. If there is no fibre-optic cable, move on.

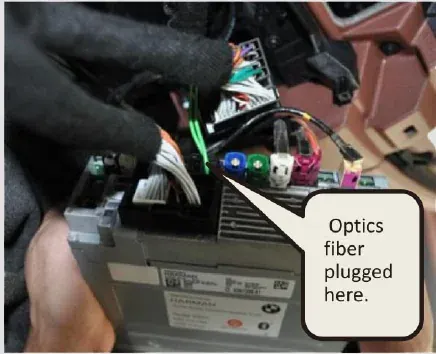

    9. BMW F10 Android screen main harness connected with the fibre-optic insert fitted

      Connect the Android harness

      The new harness sits between the car wiring and the original head unit. Lock both plugs fully and check that the fibre-optic insert has not backed out.

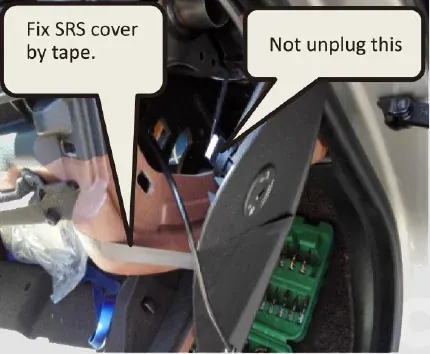

    10. USB cable routed behind the right-hand SRS cover in a BMW F10

      Run the USB lead past the SRS cover

      Hold the right-hand SRS cover out of the way with tape and feed the USB lead behind it. Do not unplug the cover's flat cable, as doing so can log an SRS fault.

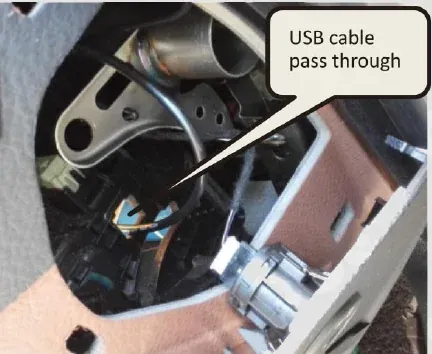

    11. USB extension cable fed into the BMW F10 dashboard storage compartment

      Bring USB into the storage compartment

      Pull enough cable into the compartment to make everyday use easy, then clip the SRS cover back into place.

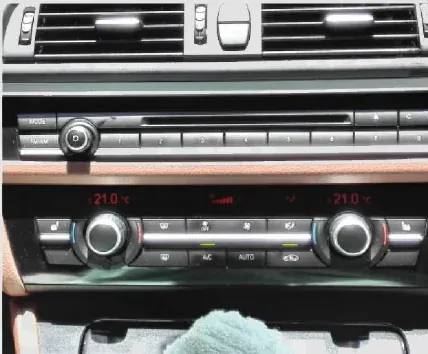

    12. BMW F10 CD and climate-control panel placed back into the centre console

      Place the head unit and panel back

      Reconnect the original control panel and settle the CD unit back into the opening. Leave the screws loose for now; there is still a sound check to do.

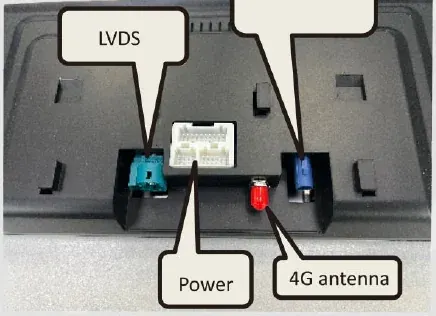

    13. LVDS power GPS and 4G antenna sockets labelled on a BMW Android display

      Connect the screen cables

      Plug the original LVDS lead into the labelled LVDS port, followed by the Android power lead, GPS antenna and optional 4G antenna. Position the GPS antenna where metal trim will not shield it.

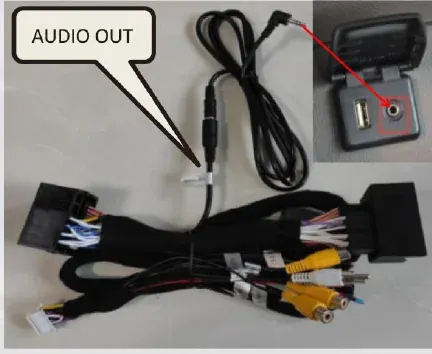

    14. Android screen Audio Out cable beside the BMW centre-console AUX input

      Check the sound before reassembly

      Reconnect power and play audio from Android. If it is silent, connect the harness Audio Out plug to the car's AUX input, choose Manual under AUX switching in the Android factory settings, and select AUX in the original BMW radio.

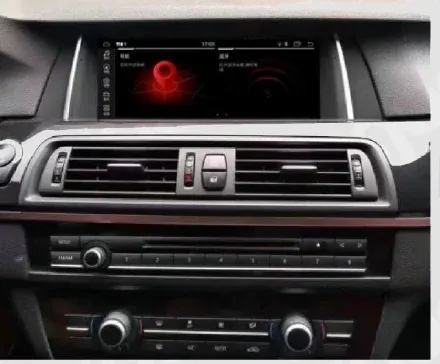

    15. Finished 10.25-inch Android screen installation in a BMW F10 dashboard

      Finish the 10.25-inch version

      For a 10.25-inch unit, refit the head unit, control panel and centre vent, then secure the Android display with its screws.

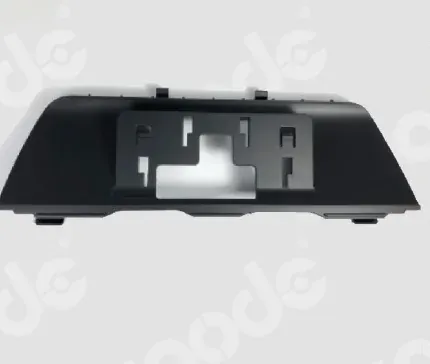

    16. Plastic mounting bracket supplied for a BMW F10 12.3-inch Android screen

      Fit the 12.3-inch mounting bracket

      The larger screen uses the supplied plastic bracket. Screw it into the original display position, connect the screen and make sure the screen clips firmly to the bracket.

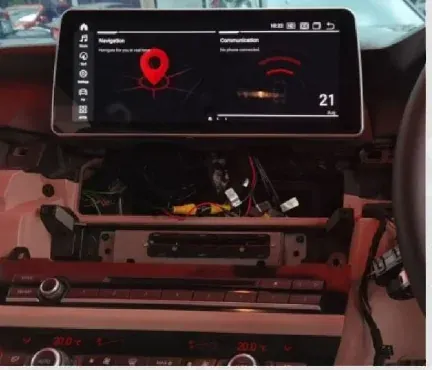

    17. BMW F10 12.3-inch Android display connected before the centre trim is refitted

      Finish the 12.3-inch version

      Once the display and sound tests pass, refit the CD unit, climate panel and centre vent. Tuck the loom into the open spaces behind the head unit so no cable is trapped or sharply bent.

    The finished F10/F11 installation

    The screen should sit level above the centre vents with no pressure on the surrounding trim. Run through the original iDrive menu, CarPlay or Android Auto, steering-wheel buttons, Bluetooth, GPS and reversing camera before the first drive.

    Completed BMW F10 F11 Android screen upgrade displaying Apple CarPlay above the centre vents

    Choosing the right F10/F11 screen

    UGODE offers compatible 10.25-inch and 12.3-inch displays for BMW F10/F11 CIC and NBT systems. Compare your original menu and LVDS plug before selecting an option.

    Check the F10/F11 productWiring and troubleshooting

    Common questions

    Why does the Android side have no sound?

    Start with the fibre-optic insert: if the car has one, it must be in the new harness. Cars that carry Android audio through AUX also need Audio Out connected to the AUX input, AUX selected in iDrive and the correct AUX switching setting on the Android side.

    Why does the original BMW menu show “No signal”?

    Reseat the LVDS lead at both ends and confirm that the Android factory setting matches the car's CIC or NBT system and original screen resolution.

    Should the panels be screwed back before testing?

    No. Rest the head unit and panels safely in position, test every function, and only then tighten the screws. It saves dismantling the dashboard twice if a plug needs attention.
