After installing the new cluster, the displayed fuel level, range, and average fuel consumption are inaccurate.
1.Set the correct fuel tank capacity for the vehicle.
- First, fill the car’s fuel tank to full to accurately obtain the vehicle’s fuel tank value.

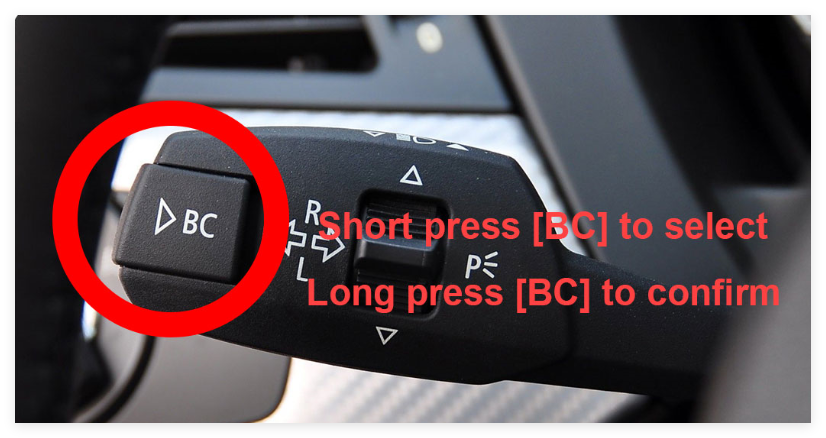

- Long-press the bottom-left button on the original instrument cluster and select the “10 Unlock” menu.
- For Example: Add the last 5 digits of the VIN together (e.g.,as shown in below 5+1+9+0+6=21), (as shown in the left figure 5+1+9+0+6=21),enter 21 in the CODE field, then press the button to exit.

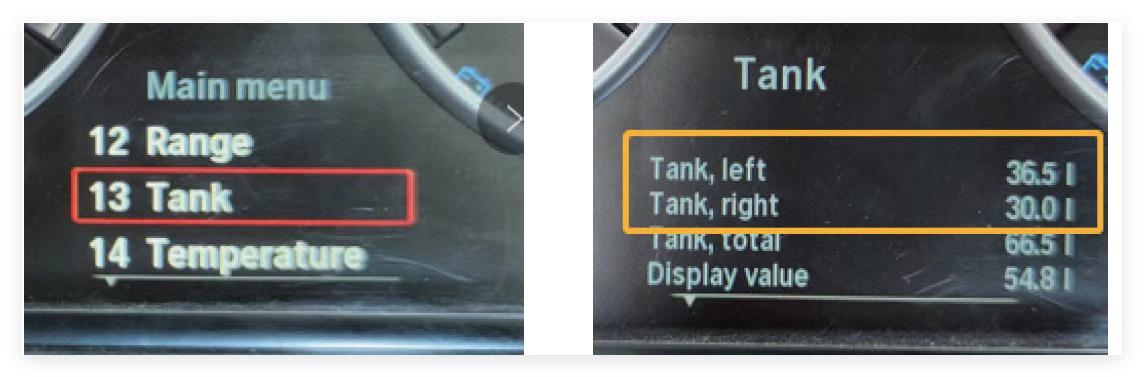

Select the “13 Tank” menu to enter, and record the values: Tank left 36.5 L (round to 37 L), Tank right 30 L.

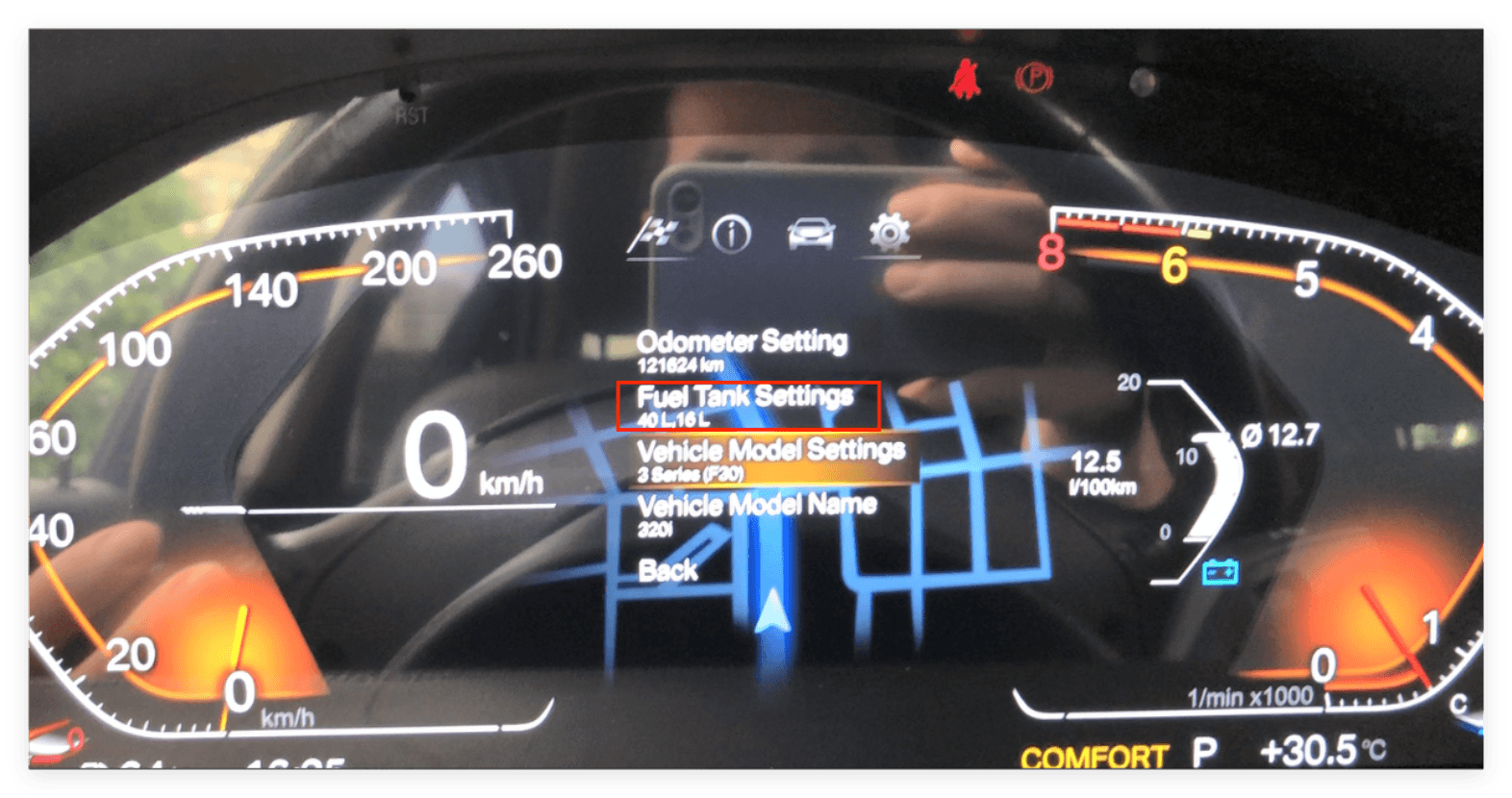

After installing the new digital instrument cluster, set the main tank to 37 L (Tank left value) and the auxiliary tank to 30 L (Tank right value).Route:system setting-factory setting-0188-Fuel Tank Settings

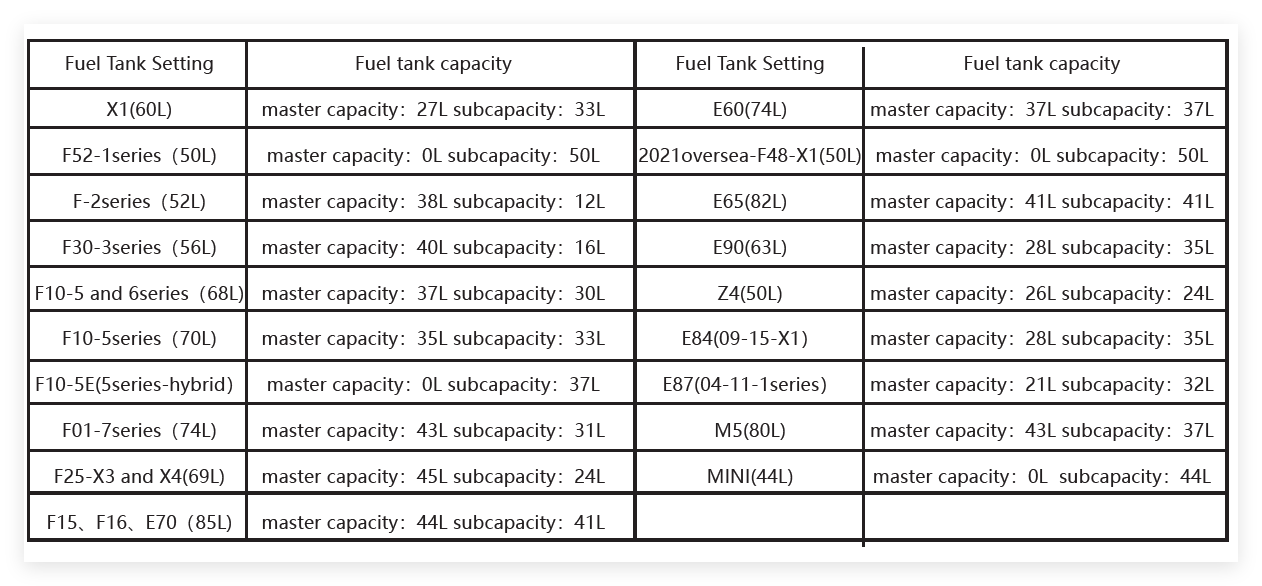

- If the original tank values are unavailable, use the preset values below.

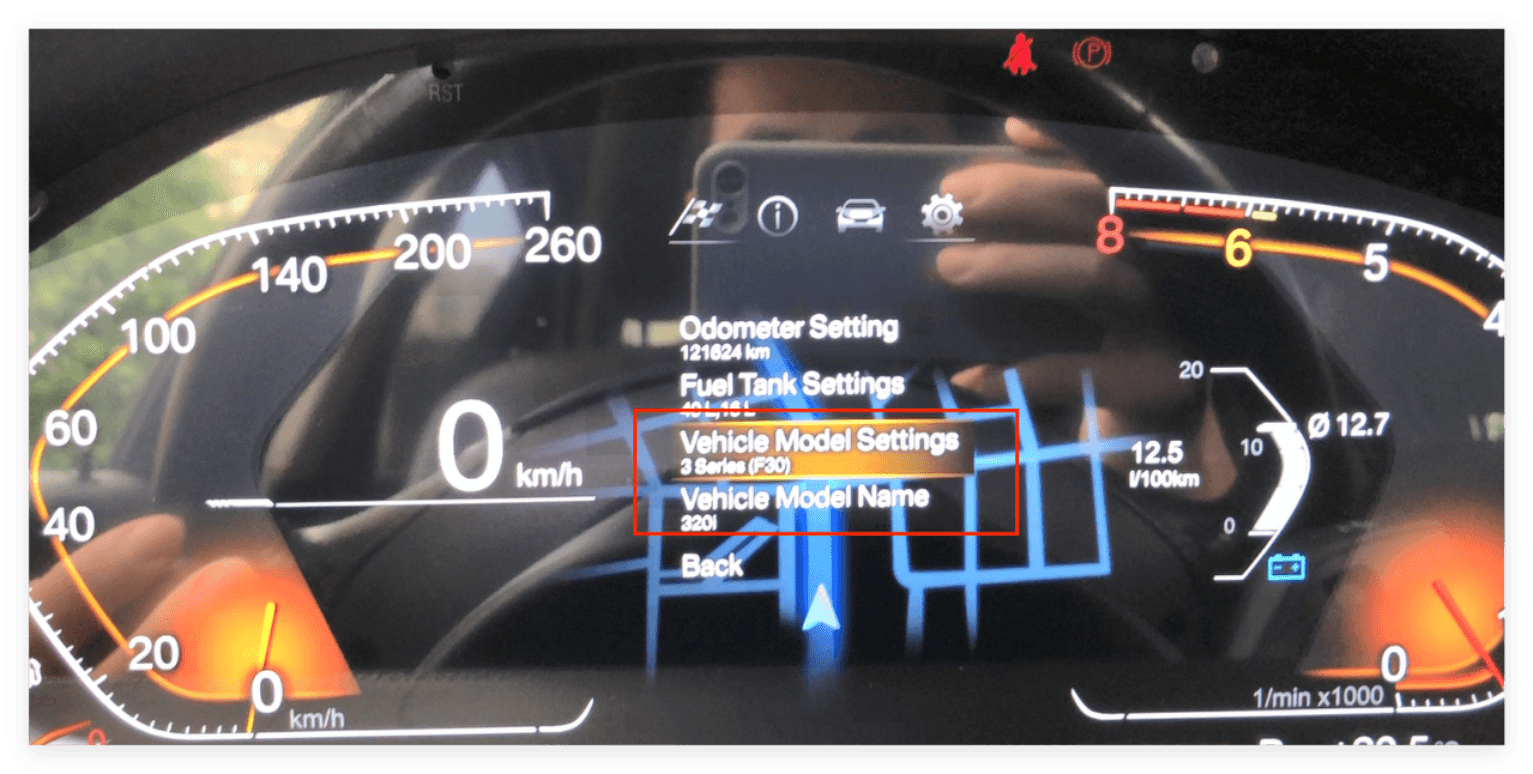

2."Vehicle Model Settings" and "Vehicle Model Name" need to be set correctly(Route:system setting-factory setting-0188)
3.Sometimes, even after correct settings, there may still be discrepancies. Please drive for 100 km and then check if the data is normal. If the discrepancy persists, contact us for assistance.
