Why Upgrade Mercedes with Digital Cluster?
The Digital Cluster offers enhanced driving experiences with HD displays, customizable interfaces, and real-time data updates. This guide provides detailed instructions for safe installation, suitable for both car owners and technicians.
Preparation Checklist
- Tools Required: Phillips screwdriver, plastic pry tool, anti-static gloves.
- Safety Precautions: Ensure the vehicle is turned off and disconnect the battery’s negative terminal (to prevent short circuits).
Step-by-Step Installation Guide
Steps 1-3: Removing Original Components

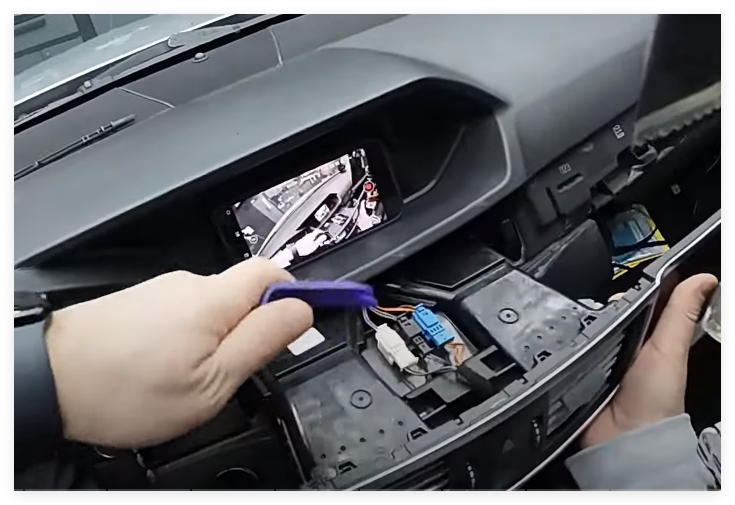

- Remove the Air Vent Panel

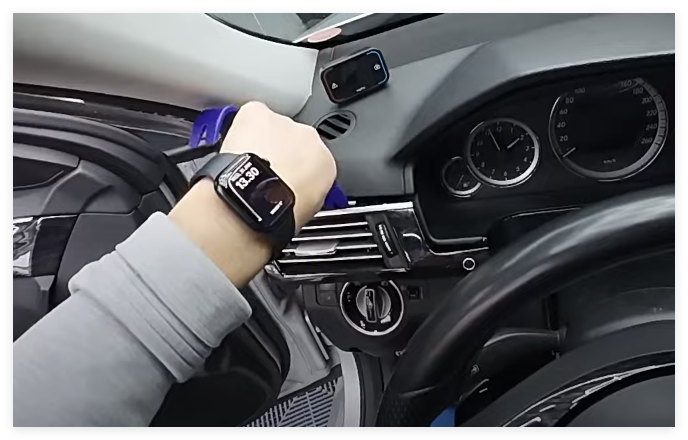

- Gently pry the edges of the air vent panel using a plastic pry tool to avoid scratching the interior.
- Detach the Large Air Vent Panel
- After removing the first layer, proceed to detach the larger lower vent assembly.
- Remove the Original Instrument Cluster Frame

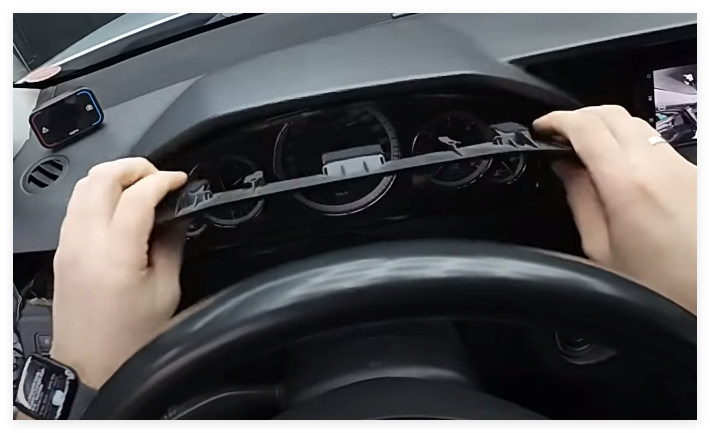

- Release the frame’s securing clips and store it carefully to prevent damage.
Steps 4-6: Uninstalling the Factory Cluster

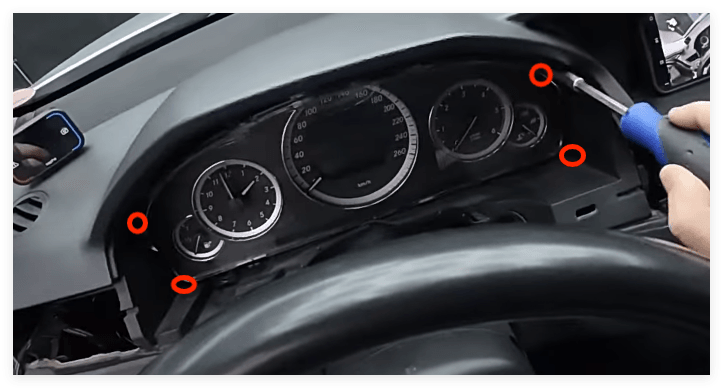

- Unscrew the 4 Mounting Screws
- Use a Phillips screwdriver to loosen the screws counterclockwise. Keep them organized.
- Remove the Original Cluster

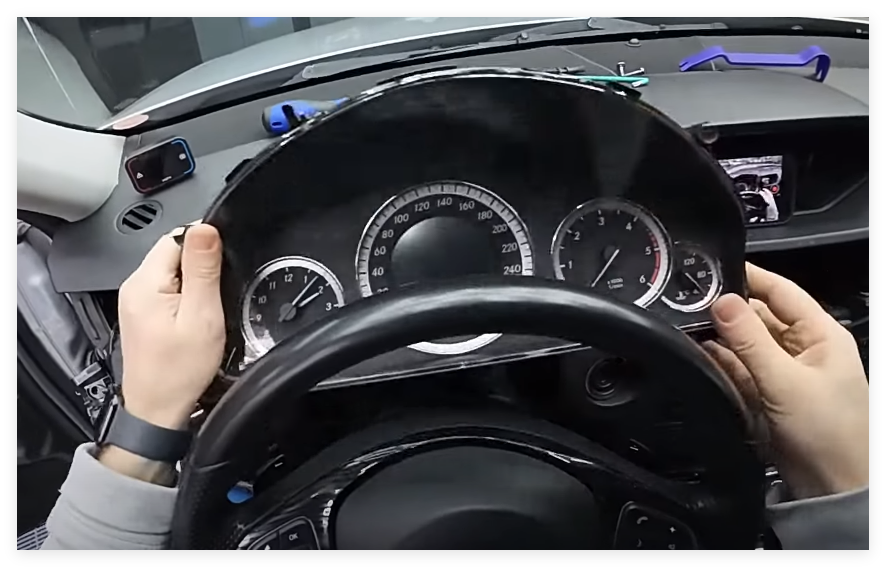

- Hold both sides of the cluster firmly and pull it out smoothly.

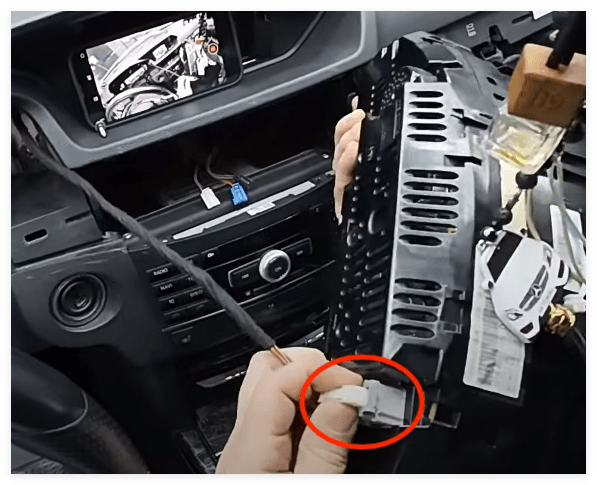

- Disconnect Power and Wiring
- Press the connector’s lock tab and unplug the harness slowly.
Steps 7-9: Installing the New Digital Cluster

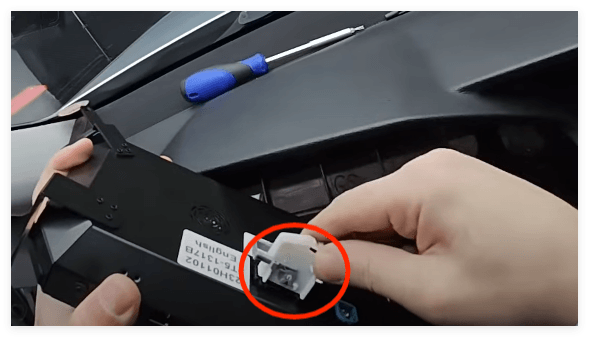

- Connect the New Cluster’s Wiring
- Align the original connector with the new cluster’s port until you hear a “click” indicating a secure fit.

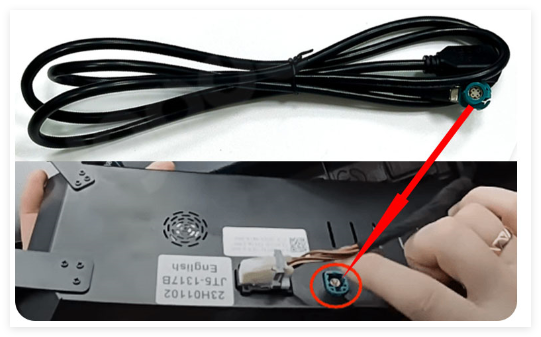

- Attach the USB Cable for Updates (Optional)
- Route the USB cable to the glovebox for future system updates.
- Secure the New Cluster
- Align the screw holes and tighten the 4 screws in a diagonal sequence to ensure even pressure distribution.
Steps 10-11: Reassembly and Testing
- Install the New Cluster Frame
- Align the frame’s clips with the dashboard slots and press until fully seated.
- Reattach Air Vent Panels
- Reinstall the panels in reverse order and ensure all components are securely fitted.
